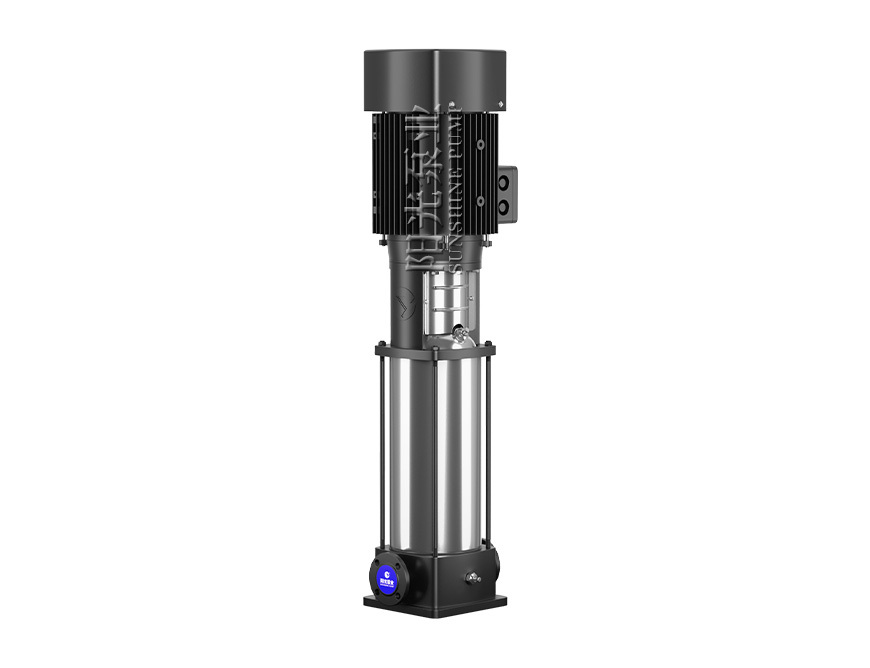

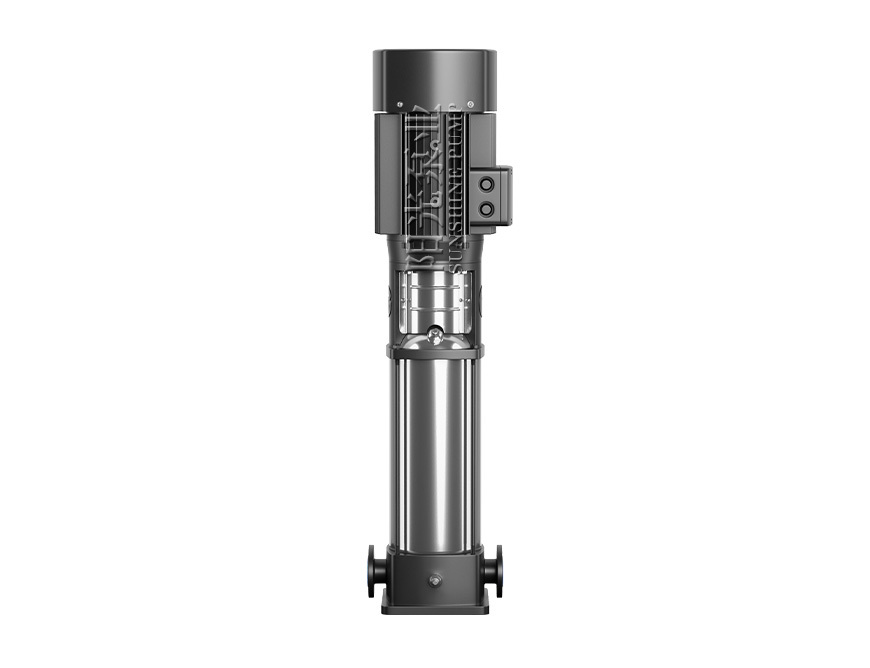

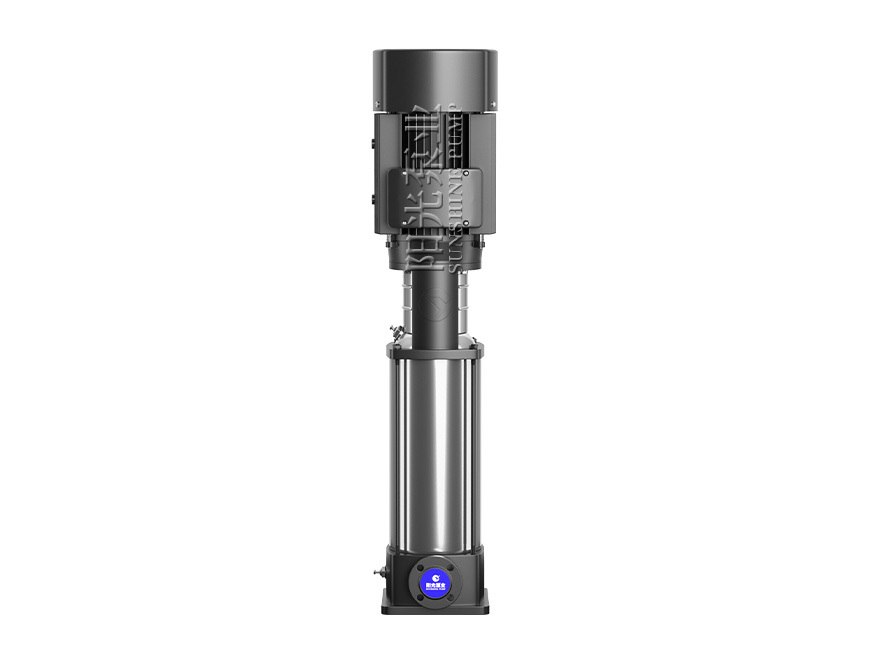

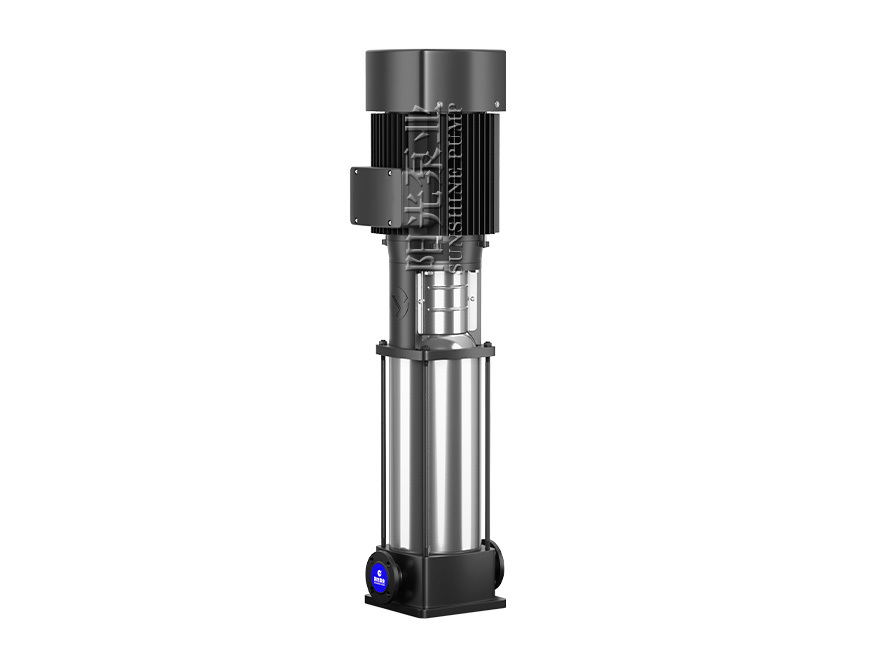

CDL/CDLF轻型立式离心泵

广泛用于高层建筑,进水口与出水口位于同一水平线

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
产品简介

CDL/CDLF系列轻型不锈钢立式多级离心泵是吸取了国内外先进技术而设计制造的非自吸立式多级离心泵,采用标准立式电机和快装式机械密封,更换非常方便。该管道离心泵可替代国外CR、CRN等同类产品。以其高效节能、质量可靠、使用范围广等特点,深受广大用户的喜爱。

产品特点

·采用优良的水力模型和先进的制造工艺,大大提高泵的性能及使用寿命。

·机械密封端面采用合金对碳化硅,辅助密封圈为氟橡胶材质,可提高泵运行的可靠性及输送介质的温度。

·泵的过流部分采用不锈钢304和不锈钢316材质板冲压焊接而成,使得泵可适用于轻度腐蚀性介质。

·整体结构紧凑、体积小、重量轻、噪声低、节能效果显著,检修方便。

·管道离心泵的进水口与出水口位于泵座同一水平线上,可直接用于管路当中。

·采用标准电机,用户可方便地根据需要配备电机。

适用范围

·稀薄、清洁、不含固体颗粒或纤维的非易燃易爆介质。

·诸如矿泉水、软化水、纯水、清油和其他轻化工介质。

·泵主要材料为不锈钢,可应用于抽送轻度腐蚀性介质。

结构图纸

CDL CDLF离心多级泵(带水印-16号)

性能参数

型号

CDL(F)1

配用电机

(kW)

流量
(m³/h)
0.40.60.81.01.21.41.61.82.0
CDL1-20.37扬程
(m)
1312.51211.51110.5109.59
CDL1-30.37191817.51716.516151412
CDL1-40.372423.52322.521.521191816
CDL1-50.373029.629282726242220
CDL1-60.373635.53533.53331282623
CDL1-70.37424140.5393836333027
CDL1-80.55484746454341383430
CDL1-90.55545352514946433933
CDL1-100.55605958575451484336
CDL1-110.55666563615956524740
CDL1-120.75727169676461575144
CDL1-130.75787775736966625547
CDL1-150.75898886847976716355
CDL1-171.11019997958986807162
CDL1-191.11131101081069996897969
CDL1-211.1124122120117110106988775
CDL1-231.11371331311281211161079682
CDL1-251.514914514313913112611610489
CDL1-271.516115715515014113612511295
CDL1-301.5178175171166157150139124106
CDL1-332.2196192188183173165154137118
CDL1-362.2214210205200190181169151130


型号

CDL(F)2

配用电机

(kW)

流量

(m³/h)

11.21.62.02.42.83.23.5
CDL2-20.37扬程

(m)



181716151312108
CDL2-30.372726242220181512
CDL2-40.553635333026242016
CDL2-50,554543403733302420
CDL2-60.755352504540363024
CDL2-70.756361575247413528
CDL2-91.18078736761544537
CDL2-111.19895898273645444
CDL2-131.51161141069889786552
CDL2-151.5134130123112100907360
CDL2-182.21611571481361211089176
CDL2-222.219719218016514813011090
CDL2-263.0232228214198179158130110


型号

CDL(F)3

配用电机
(kW)

流量

(m³/h)

121.62.02.42.83.03.23.64.0
CDL3-20.37扬程
(m)
12.511.51110.5109876
CDL3-30.371918.517.516.5151413119
CDL3-40.3725242321.52019181512
CDL3-50.37313029272523221916
CDL3-60.55363534323028272319
CDL3-70.55434139373432312722
CDL3-80.75494745433937353125
CDL3-90.75555351484542403528
CDL3-100.75615957545047453931
CDL3-111.1676461585451494234
CDL3-121.1737067635855524537
CDL3-131.1787673696460574940
CDL3-151.1908884797369665746
CDL3-171.510310096908379756452
CDL3-191.51151121071009288837258
CDL3-212.212812411911210298917964
CDL3-232.21401351301221121071008670
CDL3-252.21511471411311221161099476
CDL3-272.216415915214313212411710182
CDL3-292.217517016315314213312610988
CDL3-313.018718217516515314213511694
CDL3-333.0199194187176163151145125100
CDL3-363.0218212204192178168159137109



型号

CDL(F)4

配用电机
(kW)

流量

(m³/h)

1.52.03.04.05.06.07.0
CDL4-20.37扬程
(m)
1918171513108
CDL4-30.5528272624201813
CDL4-40.7538363432272419
CDL4-51.147454340343123
CDL4-61.156545248413728
CDL4-71.566636156484333
CDL4-81.574727064555038
CDL4-102.296908781716248
CDL4-122.211410810495857558
CDL4-143.01361261221121018968
CDL4-163.015214414012911510178
CDL4-194.018317116815313712293
CDL4-224.0211200192178160138108


型号

CDL(F)8

配用电机

(kW)

流量

(m³/h)

56789101112
CDL8-2/10.75扬程
(m)
109.59.398.5876
CDL8-20.752019.5191817161413
CDL8-31.13029.528.52725242119
CDL8-41.54139.5383634322826
CDL8-52.25250484542403632
CDL8-62.26260575451484339
CDL8-83.08380777369655852
CDL8-104.0104100979287817365
CDL8-124.0124120116111104928778
CDL8-145.514514113613012211310292
CDL8-165.5166161156148139130118106
CDL8-187.5187182175167157146134120
CDL8-207.5208202195186175163150135


型号

CDL(F)12

配用电机

(kW)

流量

(m³/h)

78910111213141516
CDL12-21.5扬程
(m)
23.52322.522212018.51715.514
CDL12-32.235.535343331.530282623.521
CDL12-4347464544424037343128
CDL12-5359.55856.55552.55046.5433935
CDL12-6471.5706866636056524742
CDL12-75.583.58279.57773.57065.5615549
CDL12-85.595.5949188848075706356
CDL12-95.510810610310095.591857971.564
CDL12-107.5120118114.511110610194.5888072
CDL12-127.5143.5141137133127121113.51069686
CDL12-1411168165160155148141132.5124112100
CDL12-1611192.5189183.5178170162152142128.5115
CDL12-1811217213207.5202192.5183171.5160145130


型号

CDL(F)16

配用电机

(kW)

流量

(m³/h)

810121416182022
CDL16-22.2扬程
(m)
2726252422211916
CDL16-33.04140383734322925
CDL16-44.05453524946433834
CDL16-55.56867656258544843
CDL16-65.58280787470645852
CDL16-77.59695918782766861
CDL16-87.51101081049994867770
CDL16-10111381361311251181099787
CDL16-1211166162157150141130116105
CDL16-1415194190184175166152136122
CDL16-1615222217210200189174156140



型号

CDL(F)20

配用电机

(kW)

流量

(m³/h)

10121416182022242628
CDL20-11.1扬程
(m)
13.51312.51211109876
CDL20-22.22726.52625242322201815
CDL20-34.04039.53938373533302724
CDL20-45.554535251494744413733
CDL20-55.567666462605855504540
CDL20-67.581797775737066615549
CDL20-77.595939189868277716558
CDL20-811109107105102999489827567
CDL20-10111361341311281241181111039585
CDL20-1215164162158154149142133124114102
CDL20-1415192189185180174166156145133119
CDL20-1718.5234230225219212202190177162145


型号
CDL(F)32

配用电机

(kW)

流量

(m³/h)

16202428323640
CDL32-10-11.5扬程
(m)
14131211974
CDL32-102.21817151413118
CDL32-20-23.029282623201611
CDL32-204.036343229272318
CDL32-30-25.547444138332821
CDL32-305.554514844403527
CDL32-40-27.565625853464030
CDL32-407.572696559534737
CDL32-50-21183797468605241
CDL32-501190868174675947
CDL32-60-211101979083746551
CDL32-60111081049790817257
CDL32-70-21511911410798887860
CDL32-7015126121113105958567
CDL32-80-2151361311231141029071
CDL32-80151441381301201099777
CDL32-90-218.515414814012911710282
CDL32-9018.516215614713612410988
CDL32-100-218.517516615714613111591
CDL32-10018.518217316415213812298
CDI32-110-222193184173164146128102
CDL32-11022200191180168153135109
CDL32-120-222211201189178160140113
CDL32-12022218208196184167147120
CDL32-130-230230218206193174153124
CDL32-13030237225213200181160131
CDL32-14O-230247235222210189165135
CDL32-14030255242229216196172142
CDL32-150-230266253239224203178145
CDL32-15030274260246231210185152
CDL32-160-230284270255240218190156
CDL32-16030292277262246225197163


型号

CDL(F)42

配用电机

(kW)

流量

(m³/h)

2530354042455055
CDL42-10-13.0扬程
(m)
2019181716151311
CDL42-104.02423222120191816
CDL42-20-25.54038363332302723
CDL42-207.54846444241393531
CDL42-30-2116361585452504438
CDL42-30117169666361585347
CDL42-40-2158784807573696254
CDL42-40159592888481787162
CDL42-50-218.51111071029693888069
CDL42-5018.5119115110105101978878
CDL42-60-2221351301241171131089785
CDL42-602214313813212512211610693
CDL42-70-230158152146138134127115100
CDL42-7030166161154146142135124109
CDL42-80-230182175168159154146133116
CDL42-8030190184176167162154141124
CDL42-90-230205198190180174166150132
CDL42-9037214207198188183174159140
CDL42-100-237230221212200194185168147
CDL42-10037238230220209203193177155
CDL42-110-245255246236223217206188165
CDL42-11045263255244232225214196173
CDL42-120-245280270259245238226206181
CDL42-12045289280268255247236216190
CDL42-130-245305294282267259247225198


型号

CDL(F)65

配用电机

(kW)

流量

(m³/h)

30405060657080
CDL65-10-14.0扬程
(m)
1918161413118
CDL65-105.527252321201815
CDL65-20-27.539363329262317
CDL65-20-11146444036333024
CDL65-201153514743403730
CDL65-30-21566625650464132
CDL65-30-11573696357534839
CDL65-3018.580767064605546
CDL65-40-218.592878071666047
CDL65-40-122100948778736754
CDL65-40221071019485807461
CDL65-50-23012111410595888064
CDL65-50-130128121112102958771
CDL65-50301361291191091029478
CDL65-60-23015014213111811010181
CDL65-60-13715714913812511710888
CDL65-603716415614513212411595
CDL65-70-23717916915614113212199
CDL65-70-137186176163148139128106
CDL65-7045193183170155146135112
CDL65-80-245207196182164154142116
CDL65-80-145215203189171161149123


型号

CDL(F)85

配用电机

(kW)

流量

(m³/h)

506070808590100110
CDL85-10-15.5扬程
(m)
221917161413106
CDL85-107.52524222120191612
CDL85-20-2114139363230282215
CDL85-20155350474441403630
CDL85-30-218.56865605552494132
CDL85-30228177726764625548
CDL85-40-2309893878075726250
CDL85-40301101051009286847666
CDL85-50-23712612011310498938168
CDL85-50371391311241151101069483
CDL85-60-24515514813912912211710286
CDL85-6045168160150141134130117103


型号

CDL(F)120

配用电机

(kW)

流量

(m³/h)

60708090100110120130140150
CDL120-1011扬程
(m)
2221.821.62120.519.518.5171615
CDL120-20-2153433.6333130.23028.5272524
CDL120-20-118.5414039.538.53736.534.532.53027.5
CDL120-2022464544.543.542.44140383633.5
CDL120-30-23057565553.552514946.543.541
CDL120-30-1306463626058.557.555.5524946
CDL120-303069.568.567.56664.462.56157.554.551
CDL120-40-23780.579787673.572696661.558
CDL120-40-137878684.582807876726864.5
CDL120-404592.591908885.58381777368.5
CDL120-50-245104.51031019996939085.580.575.5
CDL120-50-145110.5109107.5105102100979286.583
CDL120-5055115.5114113110107.5104.5101.5969186
CDL120-60-255128125.5123121117.3113.5110104.598.592.5
CDL120-60-155134132130.5127124121118111105100
CDL120-6075139137135132128.8126123116110104
CDL120-70-275151148145.5143138.6134130123.5116.5109
CDL120-70-175156.5154152148.5144.5141137.5130123116.5
CDL120-7075162.5160.5158.5155151148145137129123


型号
CDL(F)150

配用电机

(kW)

流量

(m³/h)

8090100110120130140150160170180
CDL150-10-111扬程
(m)
18.317.817.31716151412.511108.5
CDL150-1015242322.52221.520.52018.5171615
CDL150-20-218.53735.5343332312927.5262321
CDL150-20-12244.34342403938.537.535333027
CDL150-20305049484745.5444240373432
CDL150-30-23063.5615957.55654.5534945.54239
CDL150-30-1377068676563626056534945
CDL150-30377876.5757370.5686663595550.5
CDL150-40-24589878481.5797774.570.565.56056
CDL150-40-14596.59491.58986.58481.57772.56762
CDL150-4055104102100979591888479.57468
CDL150-50-255115.5112109106102.51009792867973.5
CDL150-50-175122.5119.5117113.5111.5107.5104.59993.58780
CDL150-5075130127.5125121119115111.5106.510194.586.5
CDL150-60-2751401371331301261211181121069891
CDL150-60-175148.5145141.7137.5135131127120.5114.5106.597.5
CDL150-6075157153149145142139.5137130123.5116109


型号
CDL(F)200

配用机

(kW)

流量

(m³/h)

100120140160180200220240
CDL200-10-B18.5扬程
(m)
25.525242321.5201815.5
CDL200-10-A222928.527.526.525.5242220
CDL200-103038.53837.536.5353432.530
CDL200-20-2B375351494744413732
CDL200-20-2A4559.558565452.54944.540.5
CDL200-20-A5569686664625955.551
CDL200-205578.577.5767471.5696661.5
CDL200-30-2B7591.58986.583.579757063
CDL200-30-A-B759593908783.57973.567
CDL200-30-2A7599.597.594.591.5898478.572
CDL200-30-B75104.5102.510097938984.577.5
CDL200-30-A75108106103.5100.597.5938881.5
CDL200-3090117.5116113.5110.51071039992
CDL20(M0-2B90131.5129125.5121115.5110103.594
CDL200-40-2A110138.5136132128124118111102.5
CDL200-40-A110148145.5142.5138134128122113
CDL200-40110157.5155.5152.5148143.5138132.5123.5
资料下载
PDF
下载产品PDF图册资料 PDF下载

文件大小:12.98M

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021-61515991 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
关闭
获取产品图册资料

通过手机号验证后将自动下载

手机号码格式不正确,请重新输入
获取验证码

短信验证码已发送,可能会有延后请耐心等待

关闭
高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
工程师一对一服务

点击立刻咨询

免费电话 在线咨询
